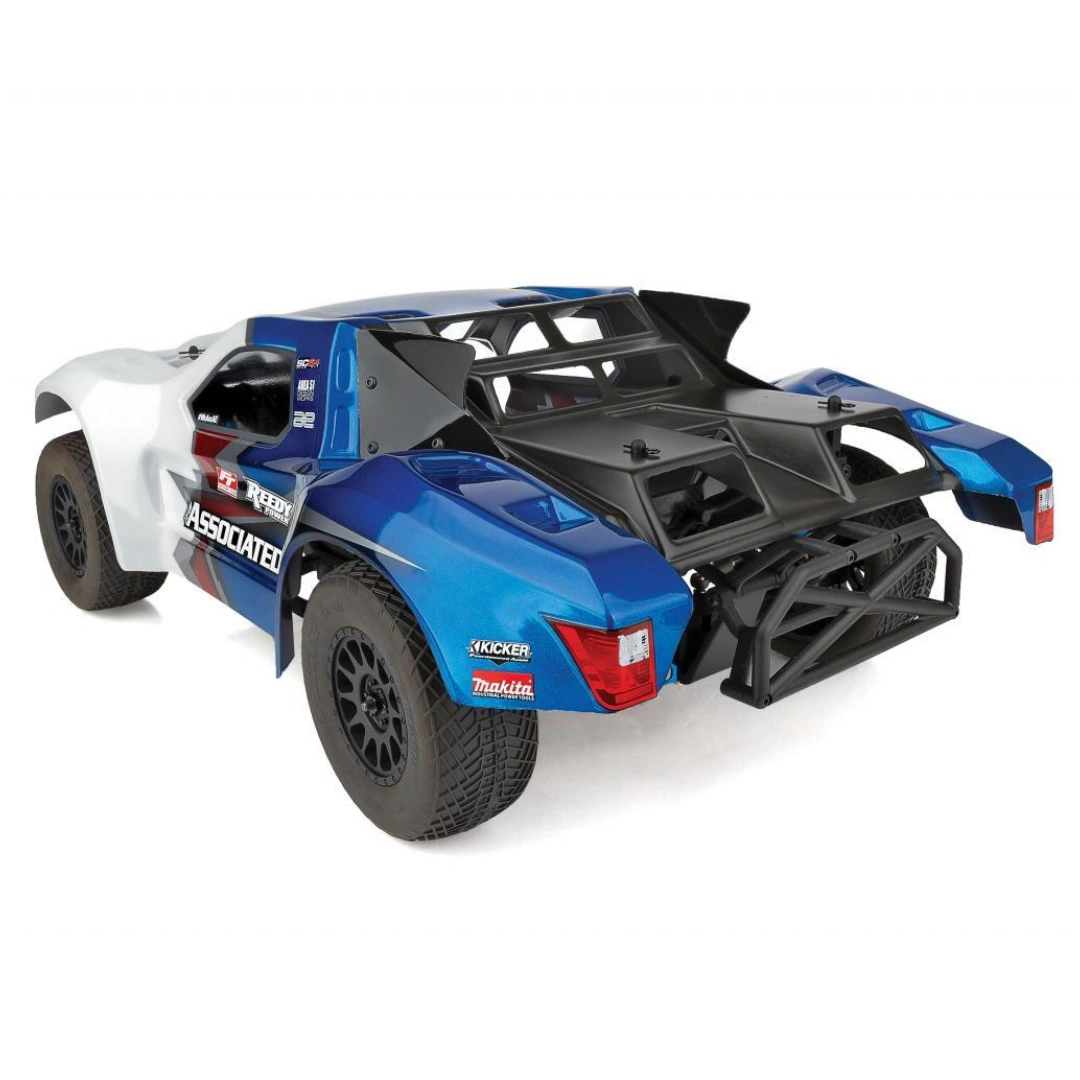

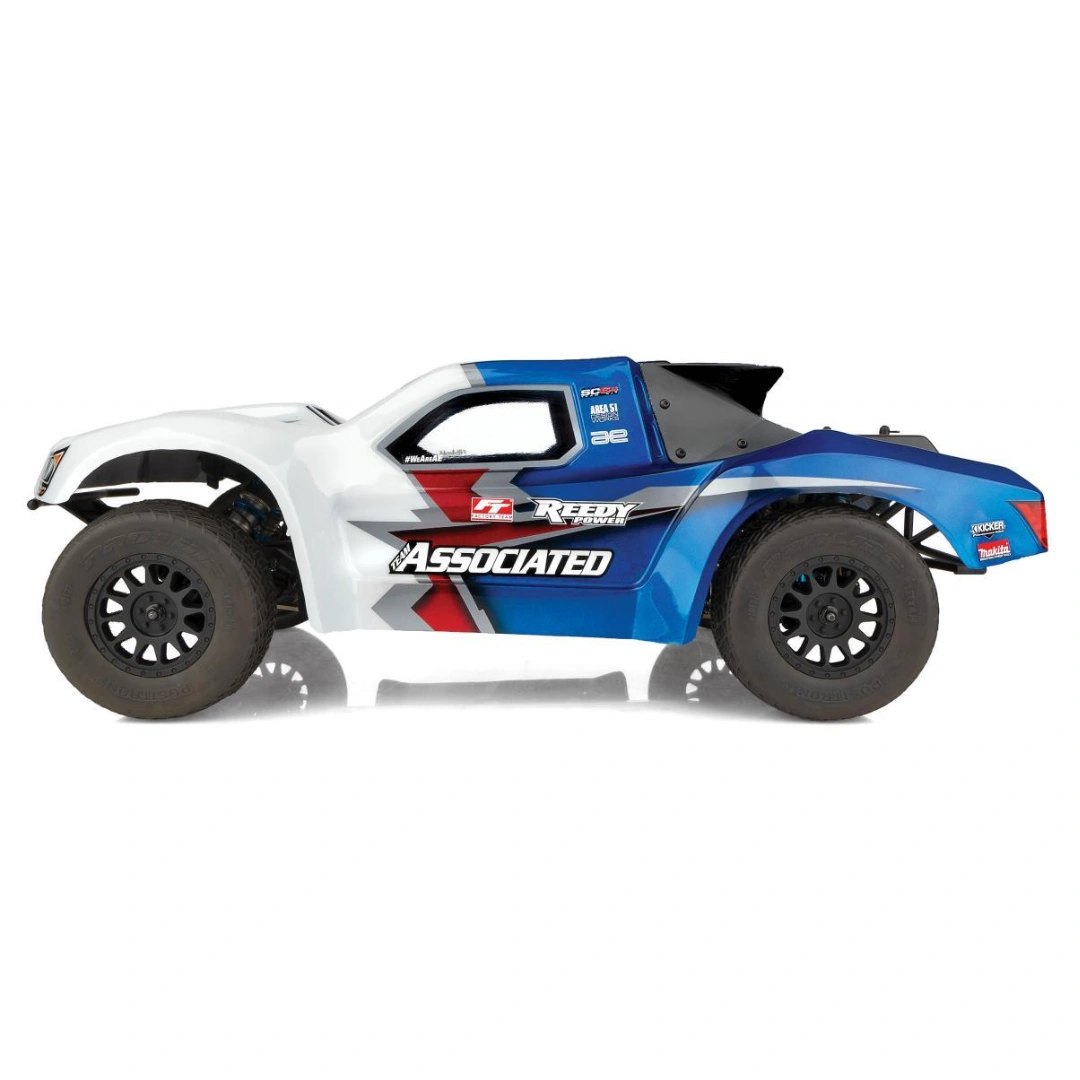

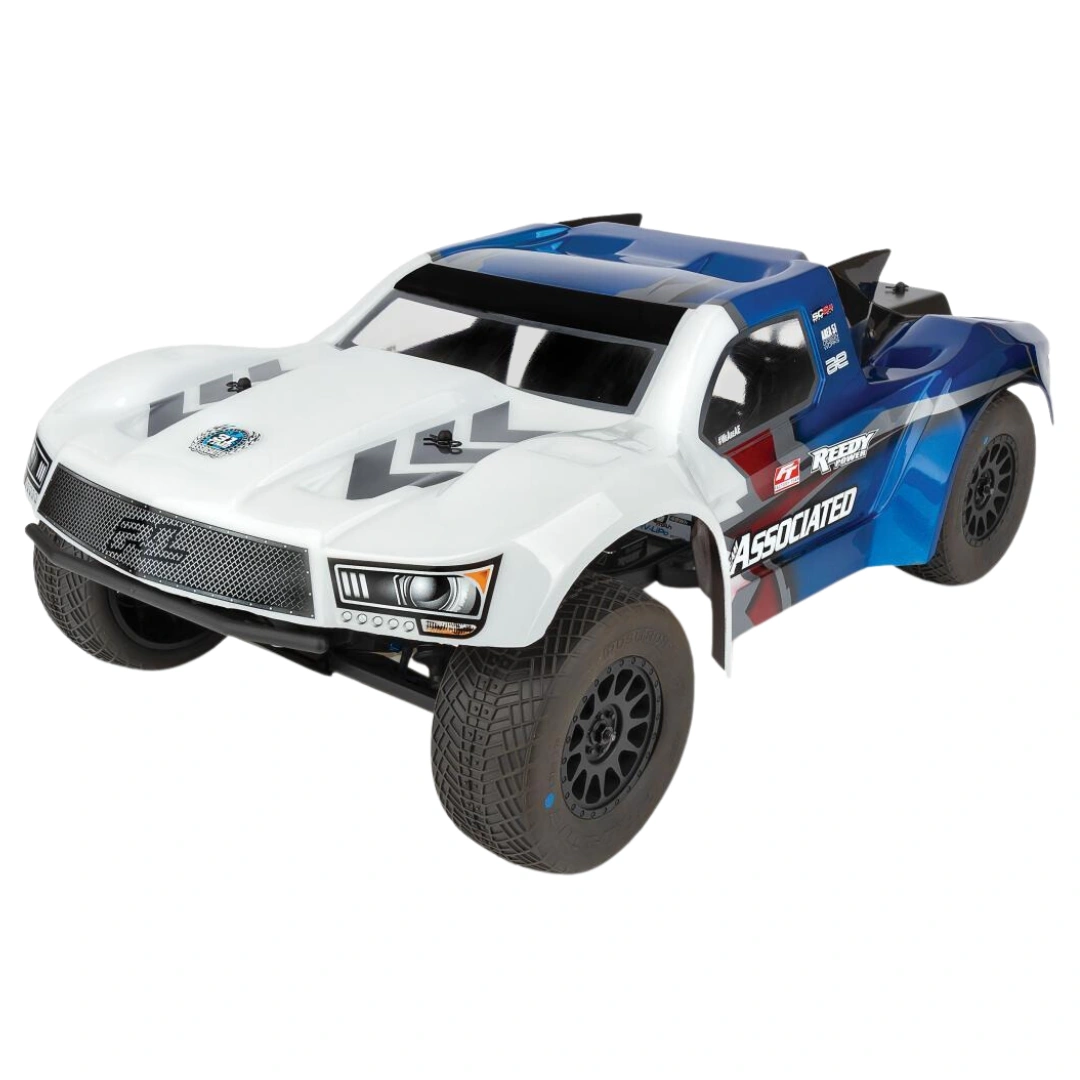

Team Associated RC10SC 6.4 Team Kit - 1/10 Stadium Truck RC Car

Team Associated RC10SC 6.4 Team Kit – Dominate the Stadium!

Unleash your inner wanderer with this extraordinary piece – a whisper of adventure woven into luxurious comfort. Handcrafted with a soul, it's not just an item, it’s a story waiting to be told. Feel the difference, own the moment.

$214.50 $429.00

num:

description

The RC10SC6.4 shares key components with the RC10T6.4, RC10B6.4, and RC10B74.2 Team Kits, making it easier than ever to run multiple classes at the same time. Suspension and jumping goes through the large-volume 13mm big bore shocks with new truck springs. The new chassis design is a short course truck version of the RC10B6.4 buggy design and gets a new ball stud mount and top plate system with an angled steering for improved consistency. On top of that, racers can tune the steering height, axle trail, and caster inserts for tuning the front end feel. The rear end grip is improved with the optional C and D mounts and 93.5mm CVA bones included in the kit. Suspension linkage rides on the new 3.5mm diameter rod ends and turnbuckles.

The RC10SC6.4 is updated to the latest racing specs to give racers an edge over the competition.

New Features of RC10SC6.4

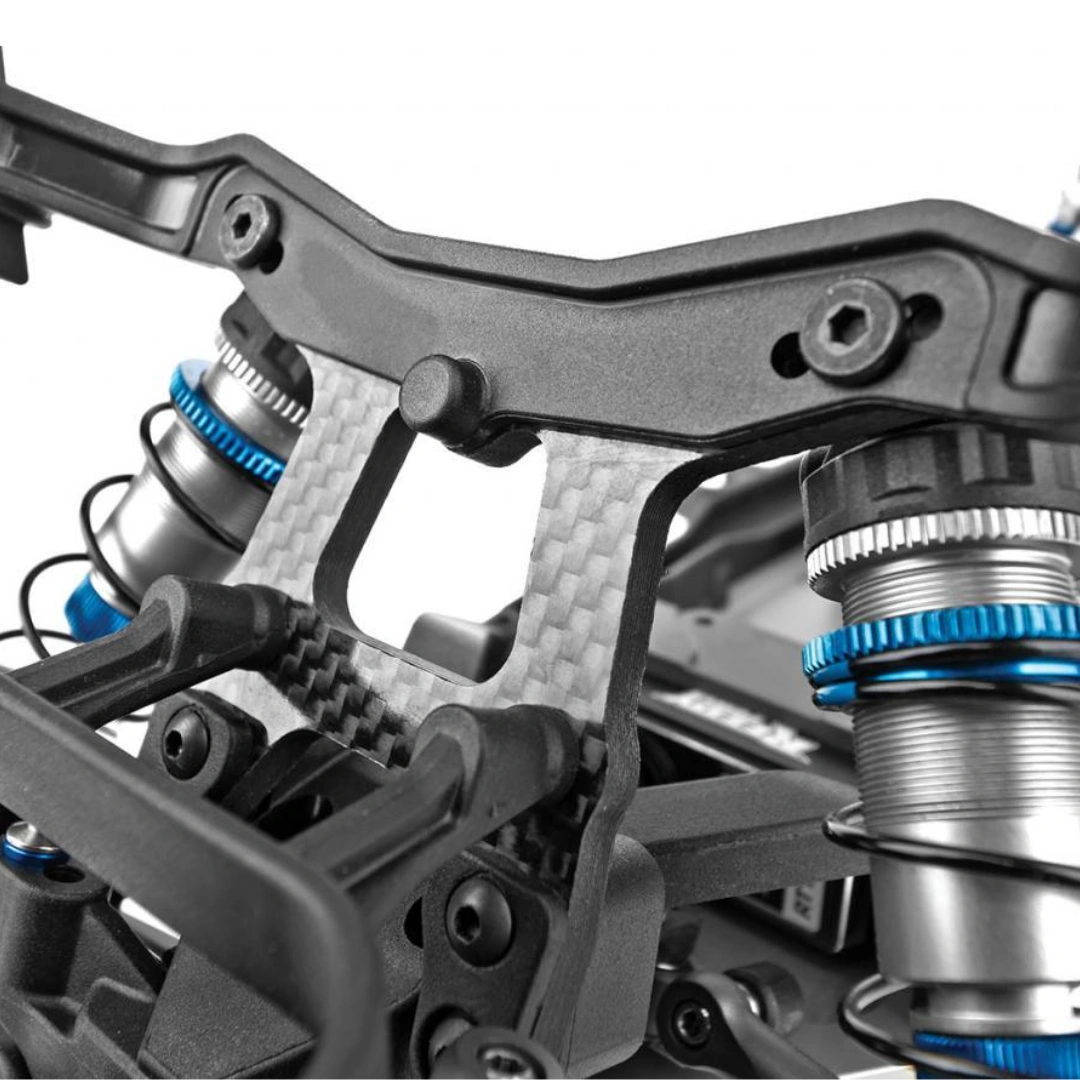

New 13mm big bore threaded aluminium shocks and springs with machined shock pistons for improved bump and jump handling
13mm machined shock pistons, 2x1.6mm front and 2x1.8mm rear
New front ball stud mount and top plate with angled steering system for improved steering consistency
New 3.5mm heavy-duty ball cups and turnbuckles for maximum durability
Updated rear suspension with wider C and D mounts from the RC10B6.4 series
New longer 92.5mm CVA driveshafts for more rear grip
7.0mm blue aluminium rear clamping hexes with laser etching
New chassis side rails with the RC10B6.4 fan mount system

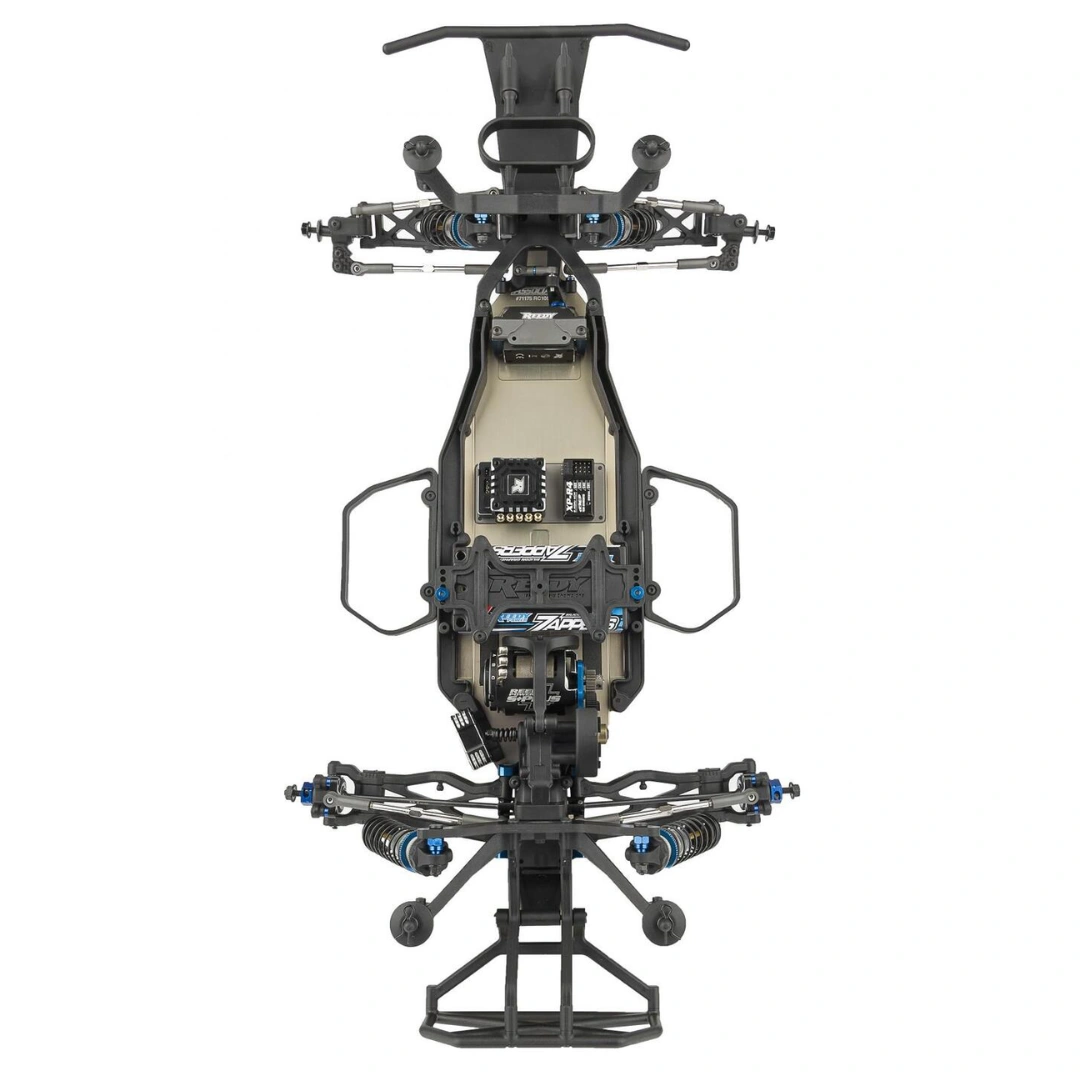

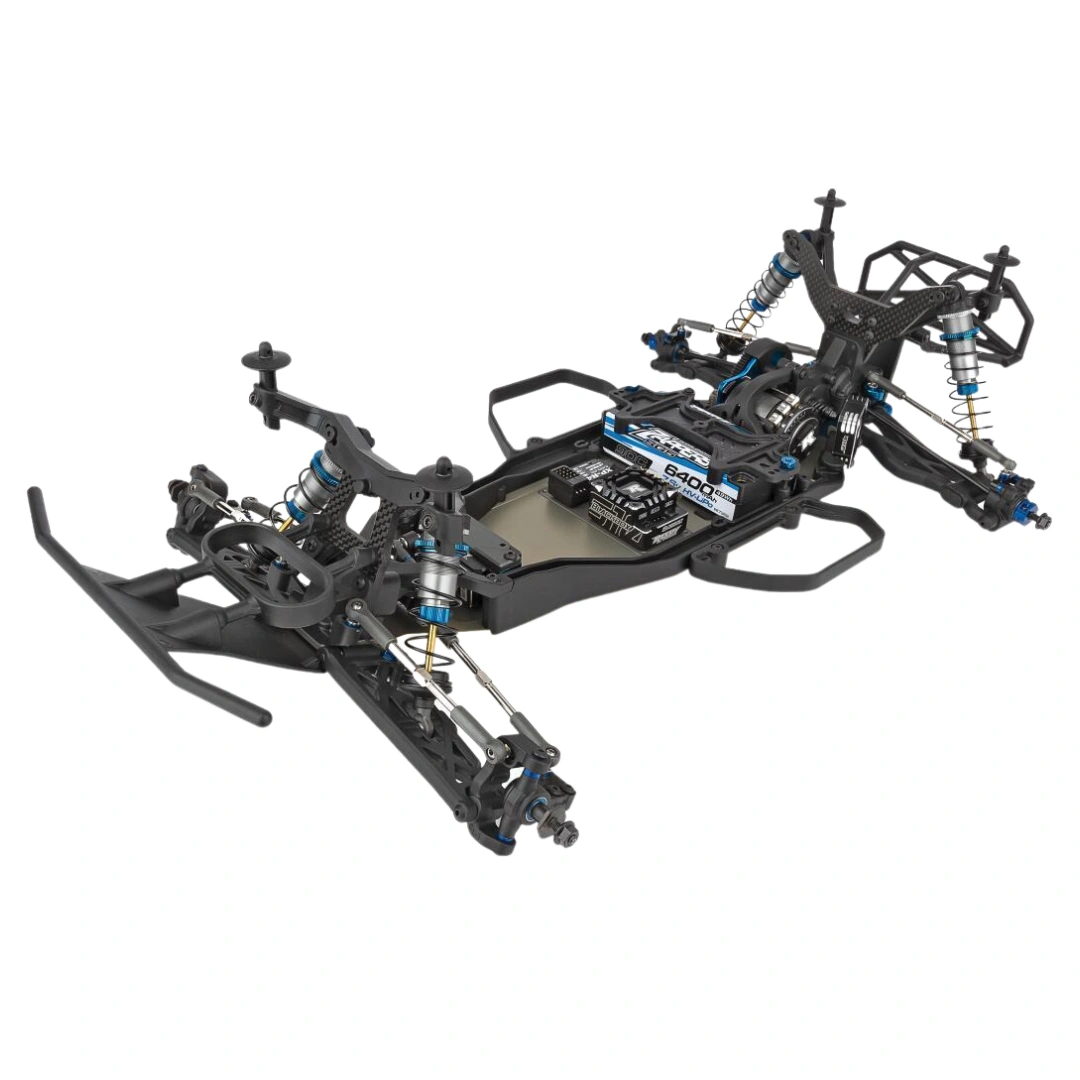

New short course truck length aluminium chassis with 22.5 deg. kick-up to complement updated front-end geometry and with new shape to reduce chassis scrub with the track surface
20 deg., 22.5 deg., and 25 deg. moulded bulkheads included for a complete range of caster and kickup options

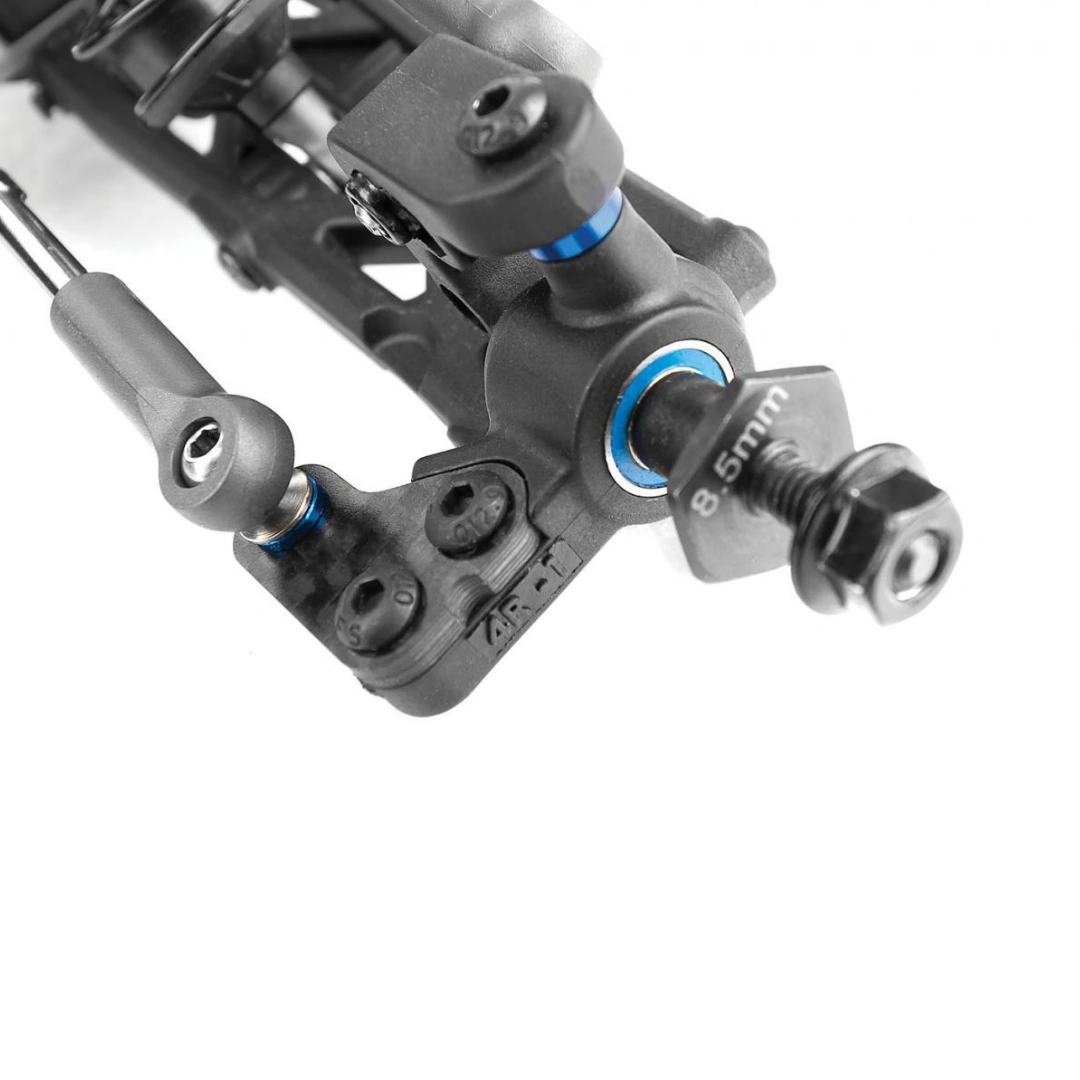

B6.4 adjustable height steering bell crank and rack system for optimized bump steer at all ride heights and caster angles
B6.4 -1mm kingpin offset steering and caster block set for smoother and more predictable steering through the entire wheel throw
Aluminium RC10B6.4 ESC mounting tray shifted forward in the chassis and with a wider footprint to fit electronics, resulting in a weight bias moved further forward
Factory Team RC10B6.4 11g aluminium ESC tray
Legacy Features from RC10SC6.2
Flat front and rear arms and shock towers for improved high traction handling
B74.1 two-piece rear hubs with aluminium upper caps for fine geometry adjustments
1.3mm front anti-roll bar and hardware included for added high-speed stability
Laydown StealthR transmission included
+1 carbon fibre steering block arms
Updated front body mount is more rigid to protect body from cracking
Lightweight, hard-anodized aluminium chassis with centralized mass and three mid-motor positions for improved handling on all track types
Differential height adjustment with included 0, 1, 2, and 3mm inserts
Easy access to differential
Split slipper assembly for better weight balance and shock clearance
Heavy-duty routed 4.0mm carbon fibre shock towers
Aluminium shocks with 3mm shafts and X-rings for improved smoothness
Machined pistons included for better fit and smoother operation
Reverse bell crank steering allows more room for mounting electronics
Bolt-on steering block arms for easy Ackermann adjustments
Aluminium rear ball stud mount for added strength
One-piece shock bushings to make assembly easier
Lightweight aluminium top shaft
Aluminium C and D arm mounts included for large range of anti-squat and toe adjustments
Factory Team upgraded ball bearing kit included
This vehicle needs extra parts to make it operational. Click on the Specifications link to see what extra equipment you'll need to make the vehicle operational, such as motor and battery pack.

Due to ongoing R&D, photos may not match final kit. Vehicle shown on these pages equipped with items NOT included in kit: Reedy motor, battery, ESC, servo, receiver, wheels, tires, body, and pinion gear. Assembly and painting required.

Vehicle Specifications

Power Source: Electric
Terrain: Off-Road
Body Style: Truck
Scale Size: 1:10 Scale
Assembly Level: Kit*
Length: varies
Width: varies
Wheelbase: 325mm (12.8in)
Weight: varies
Drive: 2WD

* This vehicle comes as a kit and must be fully assembled by the user. Electronics and/or an engine/motor may be required.

Required to Complete

1:10 scale 540-size electric motor
1:10 scale electronic speed control
2-cell LiPo battery pack
Battery charger
2-channel surface transmitter, and its batteries
2-channel receiver
Steering servo
Pinion gear
Polycarbonate RC Truck body
Spray paint for polycarbonate body
1:10 scale 12mm hex truck wheels
1:10 scale truck tires and foam inserts
Cyanoacrylate (CA) glue for tires and wheels
Thread locking compound
Other helpful items: Silicone Shock Fluid, Body Scissors, Reamer / Hole Punch, Shock Pliers, Hex Wrenches, Nut Drivers, Hobby Knife, Needle Nose Pliers, Wire Cutters, Callipers or a Precision Ruler
