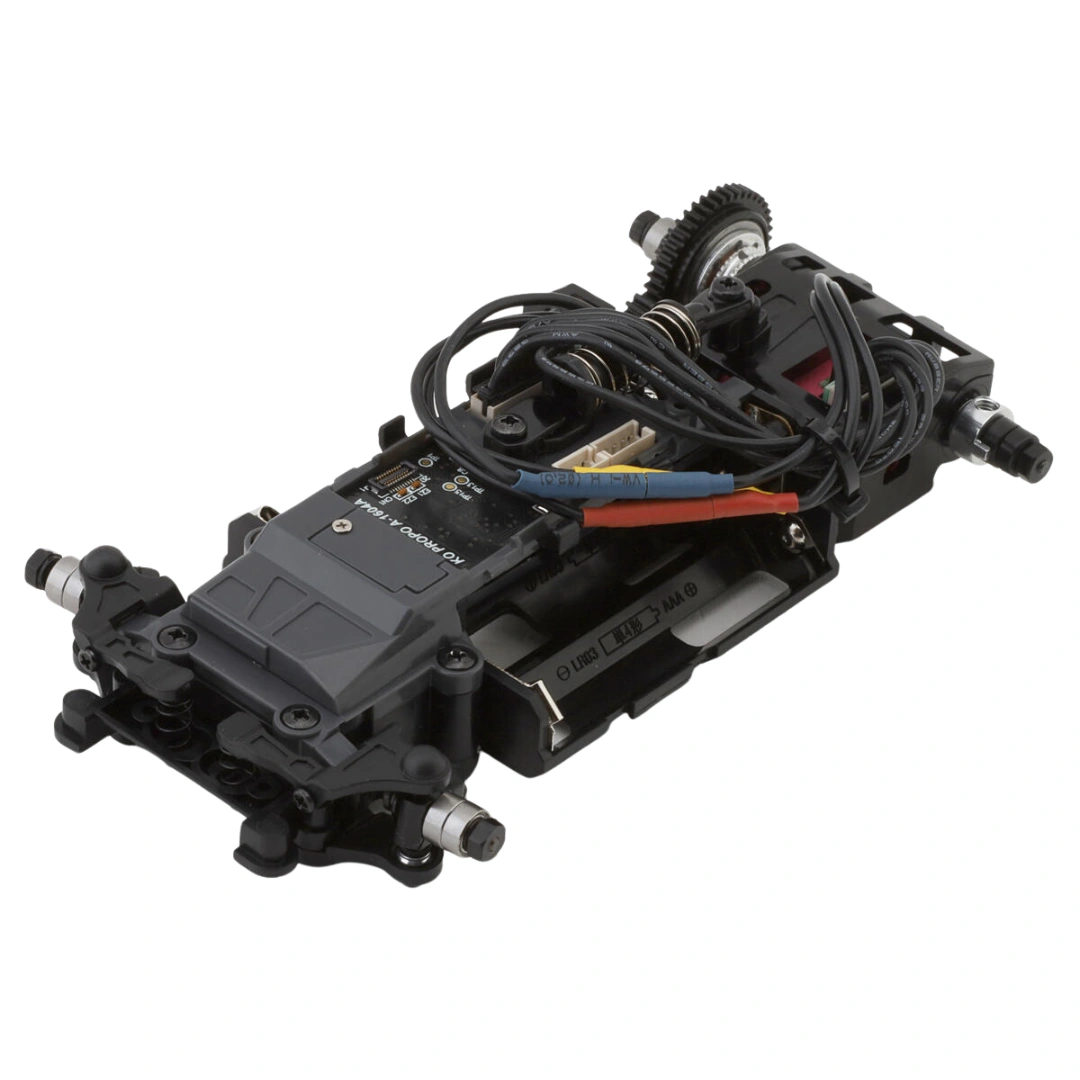

The MR-04EVO2 Mini-Z N-MM2 Brushless Chassis Set (8500kV) represents a significant leap forward in the top-tier MINI-Z series, offering a full model upgrade that pushes the boundaries of performance. Retaining the excellent MR-03 layout while introducing key enhancements, the MR-04EVO2 chassis achieves unparalleled performance improvements. The lower center of gravity (CG) resulting from the lower mounting of AAA batteries enhances stability through corners and elevates both speed and control. This thoughtful chassis design, coupled with the Sensored brushless motor, provides a total balance that takes performance to a higher level, making it a formidable competitor in the high-performance competition mini R/C car category.
Quality is evident in the meticulous design and engineering of the MR-04EVO2 chassis. The front suspension improvements, including an updated kingpin-integrated knuckle for enhanced camber stability, showcase a commitment to optimizing every detail. The geometric revisions of the caster and trail contribute to more linear maneuverability, allowing drivers precise control over their vehicles. The inclusion of a ball differential as standard further refines the driving experience, optimizing rotational differences between left and right rear wheels during turns and providing moderate slip action for improved traction. The silver clear anodized finish on aluminum parts not only contributes to durability but also adds a stylish touch that matches the chassis's exceptional performance.
What makes the MR-04EVO2 truly special is its adaptability and customization options. The chassis supports both narrow and wide tread settings, allowing enthusiasts to tailor their setup according to body type. Adjustable wheelbase adds another layer of customization, providing flexibility in chassis settings. The included brushless motor, Kyosho Speed House XSpeed 85 (8500kV) ensures the delivery of powerful, smooth and efficient performance! Taking the MR-04EVO2 to another level of dominance in the world of high-performance mini competition R/C cars, solidifying its position as one of the best of the best!
NOTE: This is an assembled chassis that still requires additional items to run. See needed to complete list below for a list of items required to complete the model.
Features
- Powerful Kyosho Speed House XSpeed 85 (8500kV) brushless motor
- Lower CG design with lower battery mounting positions
- Significant performance improvements
- Updated kingpin-integrated knuckle to further improve camber stability
- Adjustable wheelbase and tread settings
- Adjustable wheelbase
- Ball differential included as standard
- Ball bearings have been changed to 3mm internal diameter for lower rotational resistance
- Geometric revision of caster and trail
- Improved linear maneuverability
Specifications
- Scale: 1/27
- Length: 124.5mm
- Width: 72-76mm
- Height: 31mm
- Wheelbase: 98.0mm (LL)
- Weight: 135.5g
- Front Tread: 63.5 / 65.0mm
- Rear Tread: 61.5 / 65.0mm
- Gear Ratio: 7.3 / 6.3 / 5.5 / 4.9 1
- Motor: XSpeed 85 (8500kV)
Includes
- (1) MR-04EVO2 Mini-Z N-MM2 Brushless Chassis Set w/(8500kV) Motor
- (1) Electronic speed controller (ESC)
- 6T / 7T / 8T / 9T Pinion gears
- Pinion gear tool
- Wheel wrench
- Spare wheel nuts
Needed to Complete
- (1) 2-Channel Transmitter/Receiver system
- (4) AAA Batteries for Chassis
- (1) Body
- (4) Tires
- (4) Wheels
